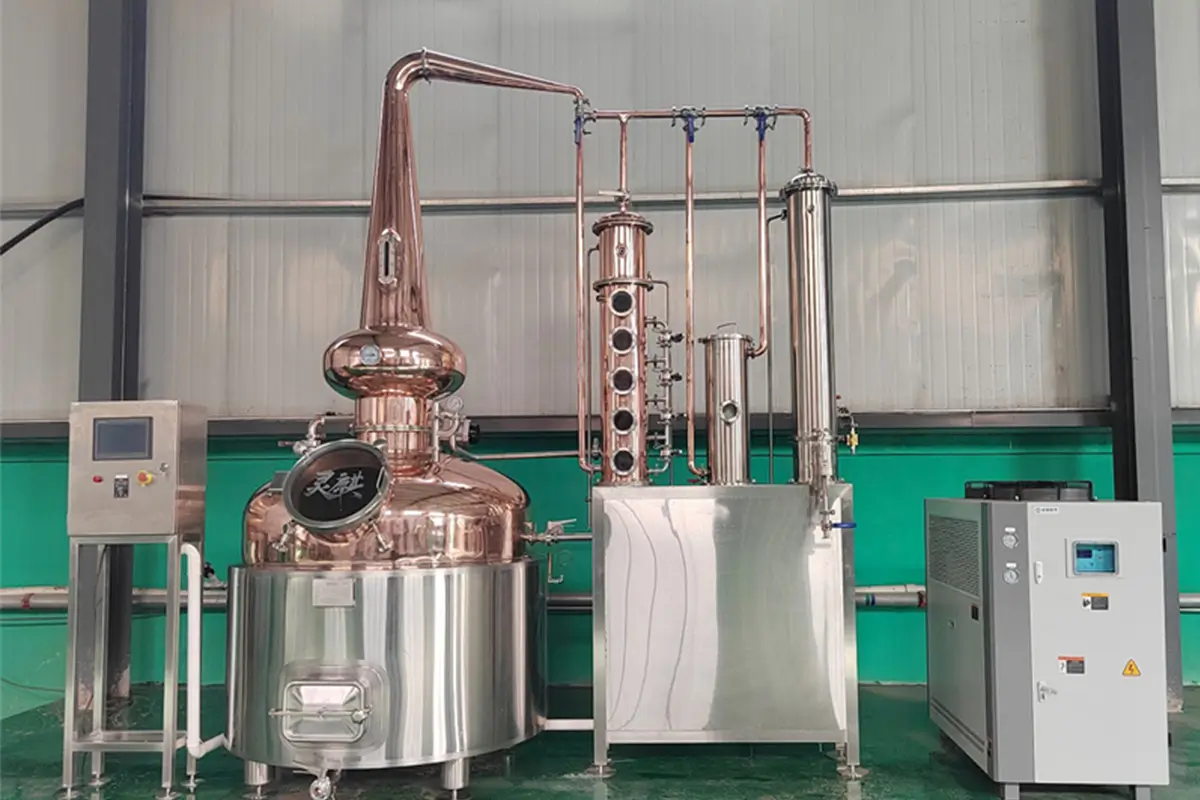

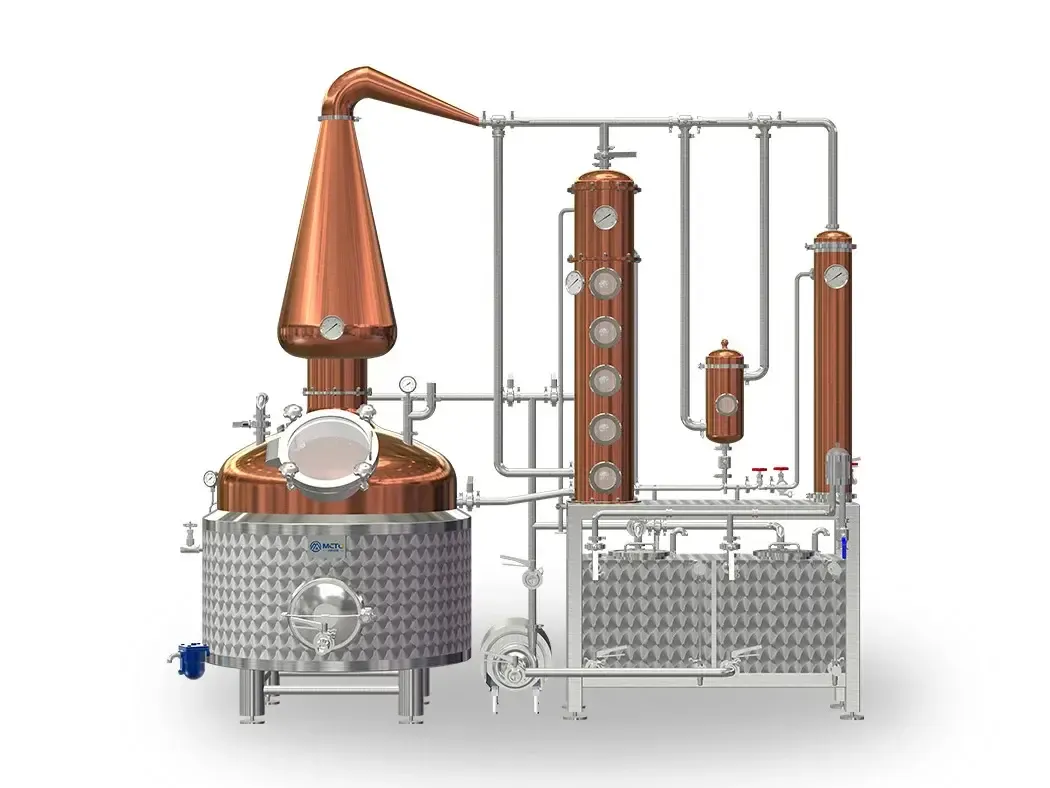

A procurement-ready 800L column distillation system engineered for commercial spirit production. The system is built around a 800L working volume still pot (1000L designed volume) with steam heating, red copper TP2 components, multi-module separation and reflux control, CIP cleaning, and a stainless electrical control cabinet.
800L

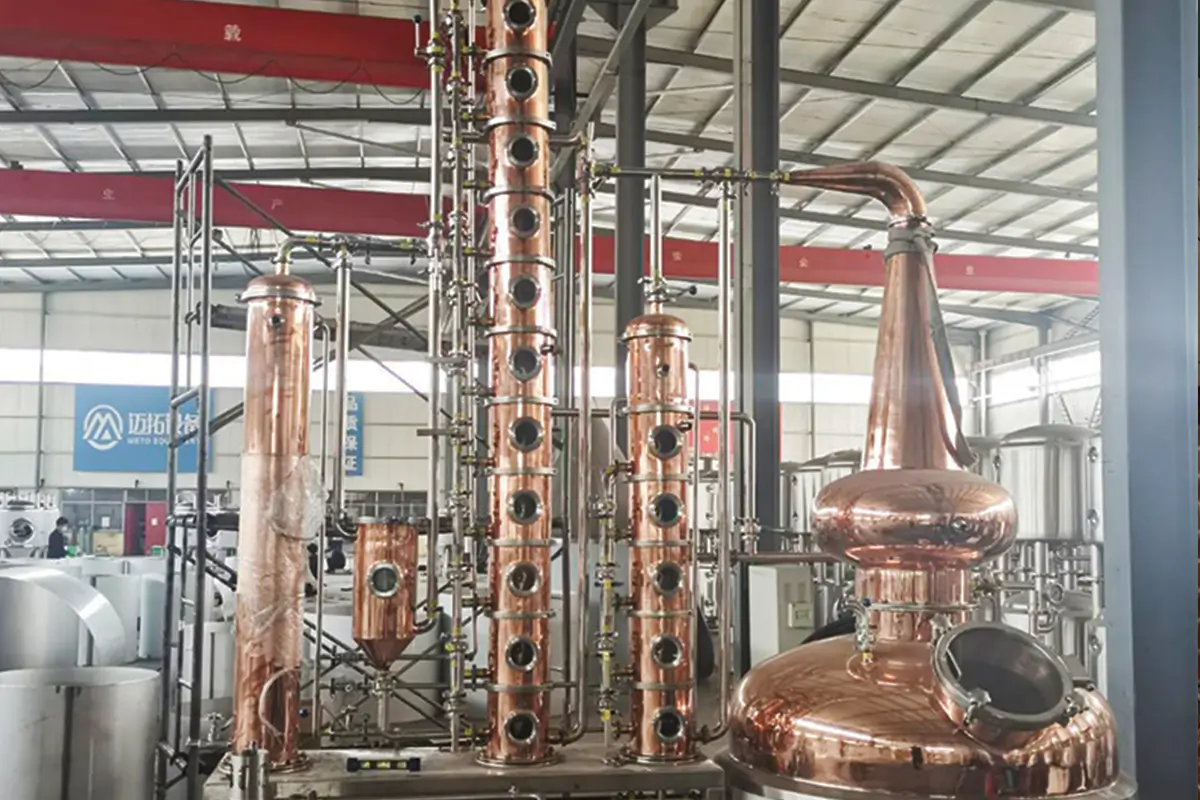

This scope list defines the delivered modules for procurement review and supplier comparison.

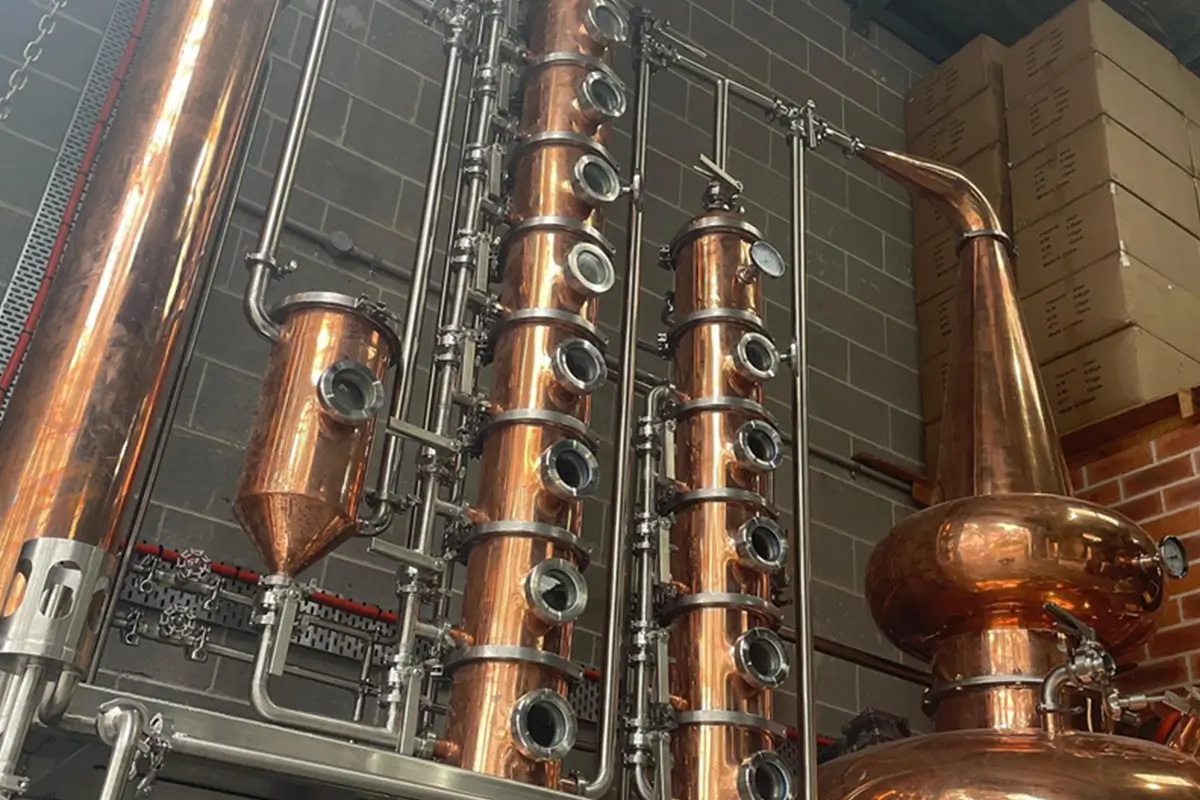

| Module | Equipment | Notes |
|---|---|---|
| Distilling Unit | 800L Still Pot + Copper Head | Red copper TP2 + SUS304 jacket/structure |
| Column System | Copper Column with Bubble Plates | 4 plates(Customizable plate layers per spirit type); plate cleaning + drainage device |
| Reflux Control | Dephlegmator | SUS304; DN15 tri-clamp cooling |
| Condensing | Main Condenser | SUS304; DN15 tri-clamp cooling |
| Flavor Module | Gin Basket (Optional) | 8.5L; 0.2mm filter basket |
| Alcohol Outlet | Wine Mouth | U-shaped outlet; hydrometer observation overflow |
| Cleaning | CIP Pump | Sanitary SUS304 centrifugal (explosion-proof) |
| Control | Electrical Control Cabinet | Temp display, pump/light/agitator control, E-stop |
| Piping | Pipelines, valves, fittings, supports | Client connects steam, power, water |
We can provide layout suggestions, utilities lists, and integration notes to reduce on-site commissioning time.
The still pot is designed for stable steam heating and safe operation, with copper TP2 contact surfaces, insulation, explosion-proof agitation, and CIP-ready cleaning features.
| Working / Design Volume | 800L working; 1000L designed |
|---|---|
| Internal Diameter | 1200mm |
| Inner Pot | Red copper TP2 (cylinder & head), thickness 3mm |
| Bottom | SUS304, thickness 3mm |
| Outer Shell | SUS304, thickness 2mm |
| Heating Method | Steam heating |
| Steam Jacket | SUS304 jacket, thickness 2mm; working pressure 0.2MPa |
| Insulation | 60mm polyurethane |
| Manhole | Glass manhole φ350mm |
| Agitator | Explosion-proof motor 0.37kW (380V/50Hz/3Ph or customized) |
| Cleaning | 360° rotary CIP cleaning ball with butterfly valve |
| Instrumentation | PT100 temperature measurement (displayed on control cabinet) |
| Safety | Steam safety valve, pressure gauge, steam trap; pressure gauge + breathing valve on pot |
| Finish | Inner drawing polishing; outer mirror polishing |
| Support | 4 legs with adjustable heavy-duty feet |
| Observation | DC24V LED light inside pot for observing distillation state |
A stainless electrical control cabinet supports operational safety and process visibility, including temperature display, pump/agitator control, lighting, emergency stop, and heating protection.
Note: Certifications shown in marketing material may vary by project scope and destination requirements. Confirm certificate scope during inquiry.
We’re not only a supplier—we support your brewery project from system configuration to commissioning and long-term operation. As a distillery equipment manufacturer, we focus on process compatibility, hygienic build quality, and scalable system design.
Configuration based on brewing workflows, not generic tank lists.
Layouts, utilities lists, and integration notes for your site.
Better cost control, faster response, clearer accountability.
Training, spare parts guidance, and expansion planning support.
Malt Handling → milling & transfer preparation
Brewhouse → mash/lautering + boil/whirlpool
Cooling & Transfer → heat exchange to fermentation temp
Fermentation → jacketed conical fermenters for stability
Distillation → Pot Still / Column Still
Conditioning (Optional) → BBT / maturation
CIP → clean-in-place hygiene standardization
Packaging (Future-ready) → keg/bottle/can integration
Choose a 800L Column Distilling Equipment layout that supports cleanability, stable fermentation temperature control, and planned expansion (more fermenters / BBT / packaging).
800L Distilling Equipment Is Designed for Commercial-Grade Small-to-Mid Scale Distillation Where Product Consistency, Process Control, and Brand Differentiation Are Essential.
Quick answers for engineering and procurement teams evaluating a 500L Distilling Equipment project.
Yes. The still pot uses steam heating with a SUS304 steam jacket designed for 0.2MPa working pressure.
Yes. The number of column plates can be customized according to your product and process requirements.
Yes. The still pot is equipped with an agitator and an explosion-proof motor (0.37kW).
Client only connects water source, power source, and steam supply. Confirm utility details during project planning.
Send your spirit type, heating conditions (steam), installation space, and local electrical standard. We will provide a configuration confirmation and quotation package for procurement and engineering review.
We can design the 500L system to be packaging-ready (keg/bottle/can integration) to avoid future rework.
