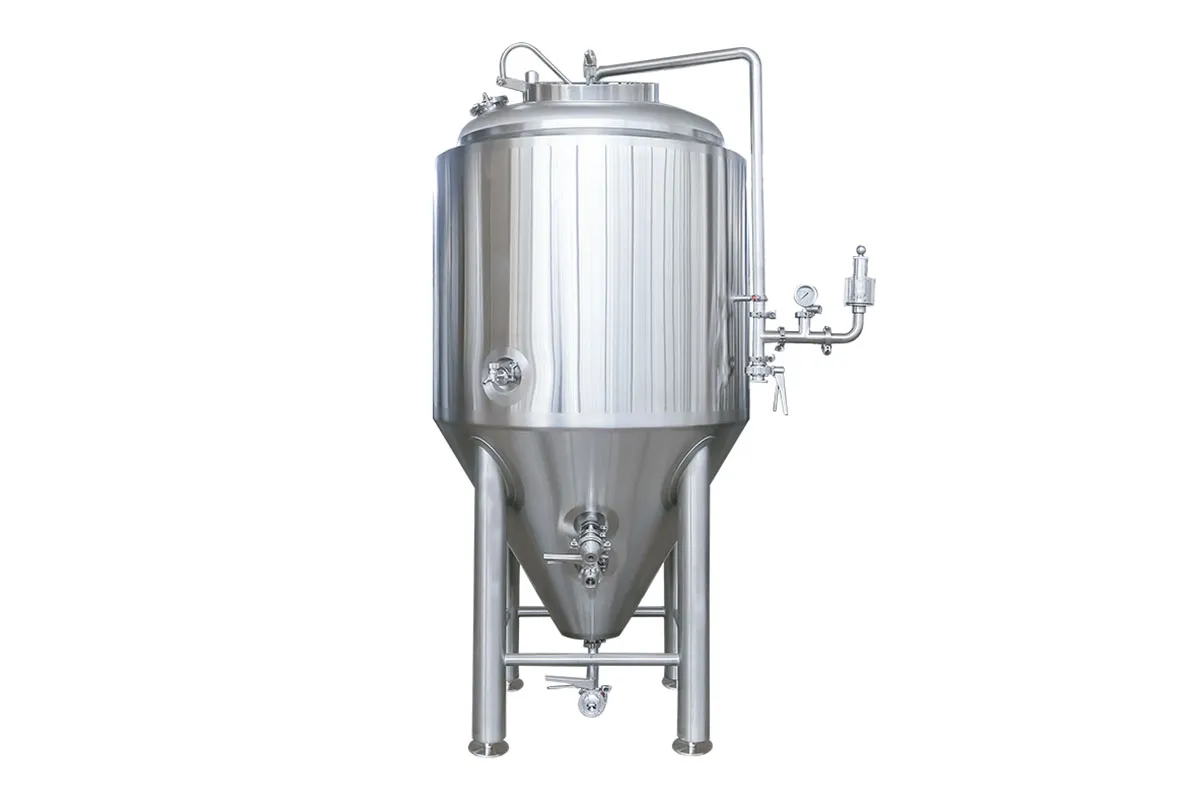

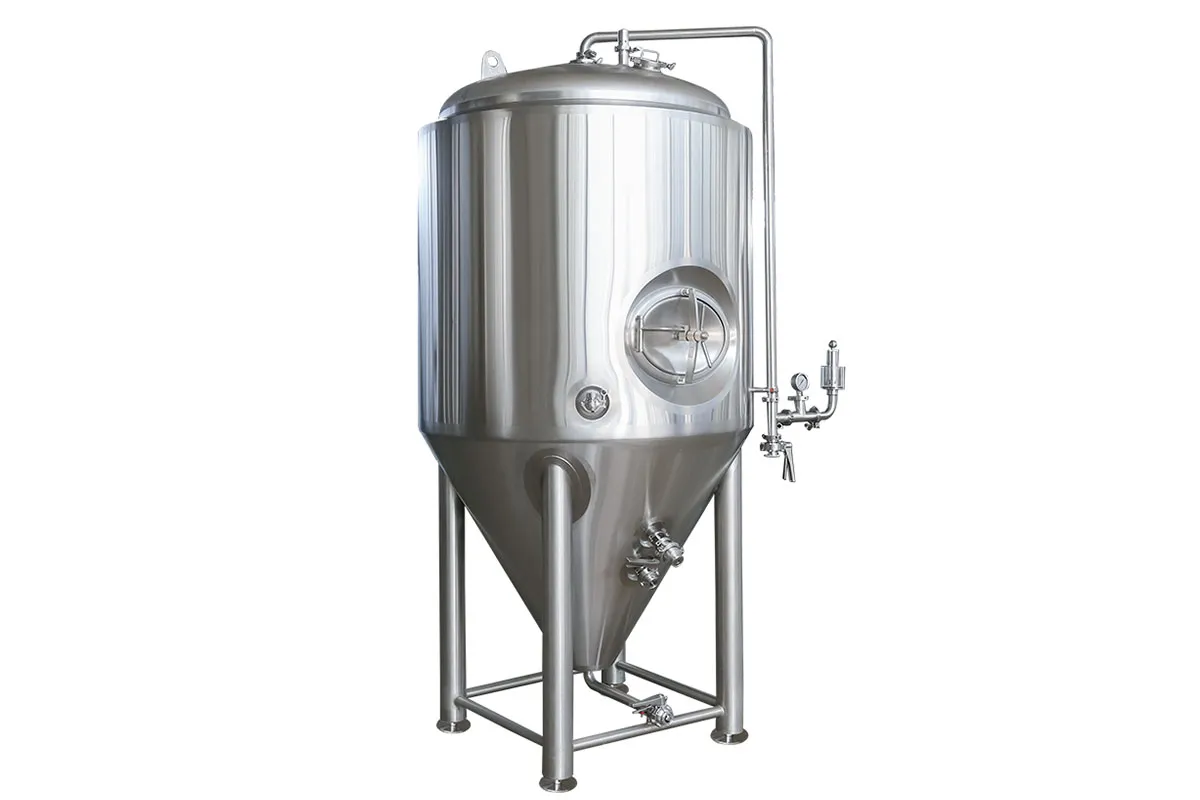

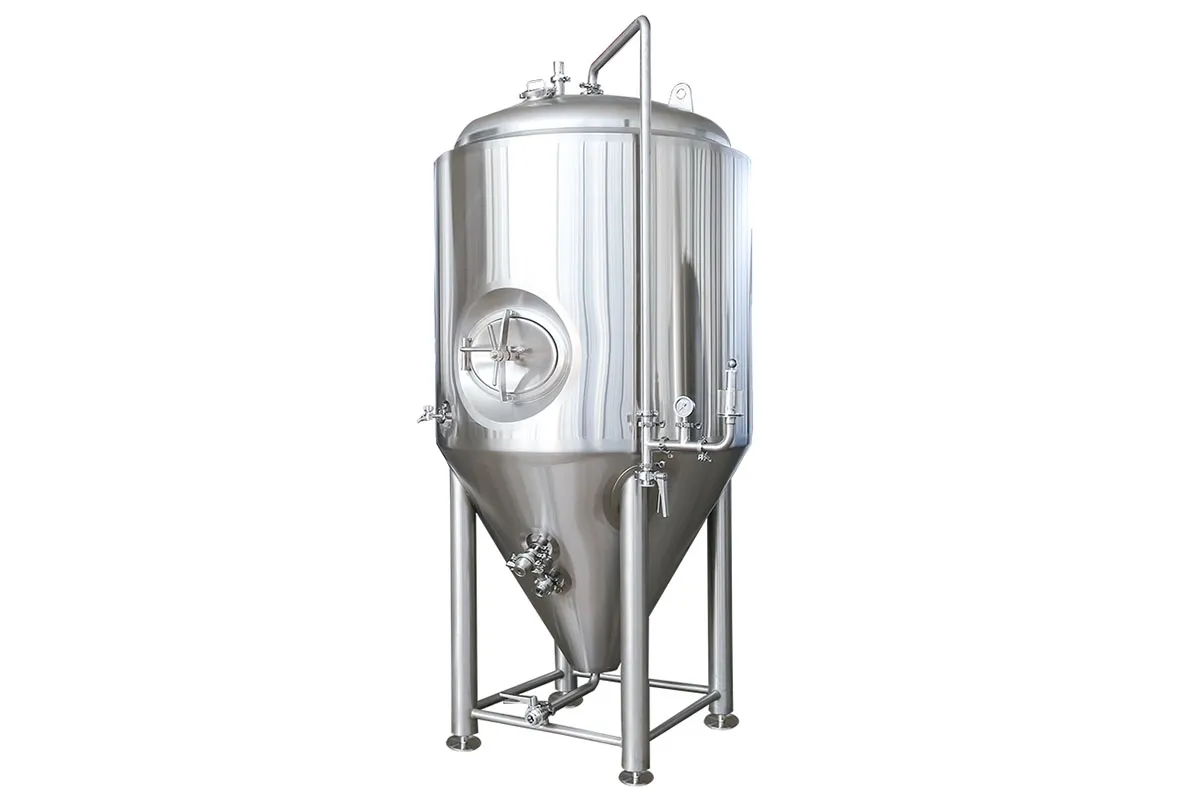

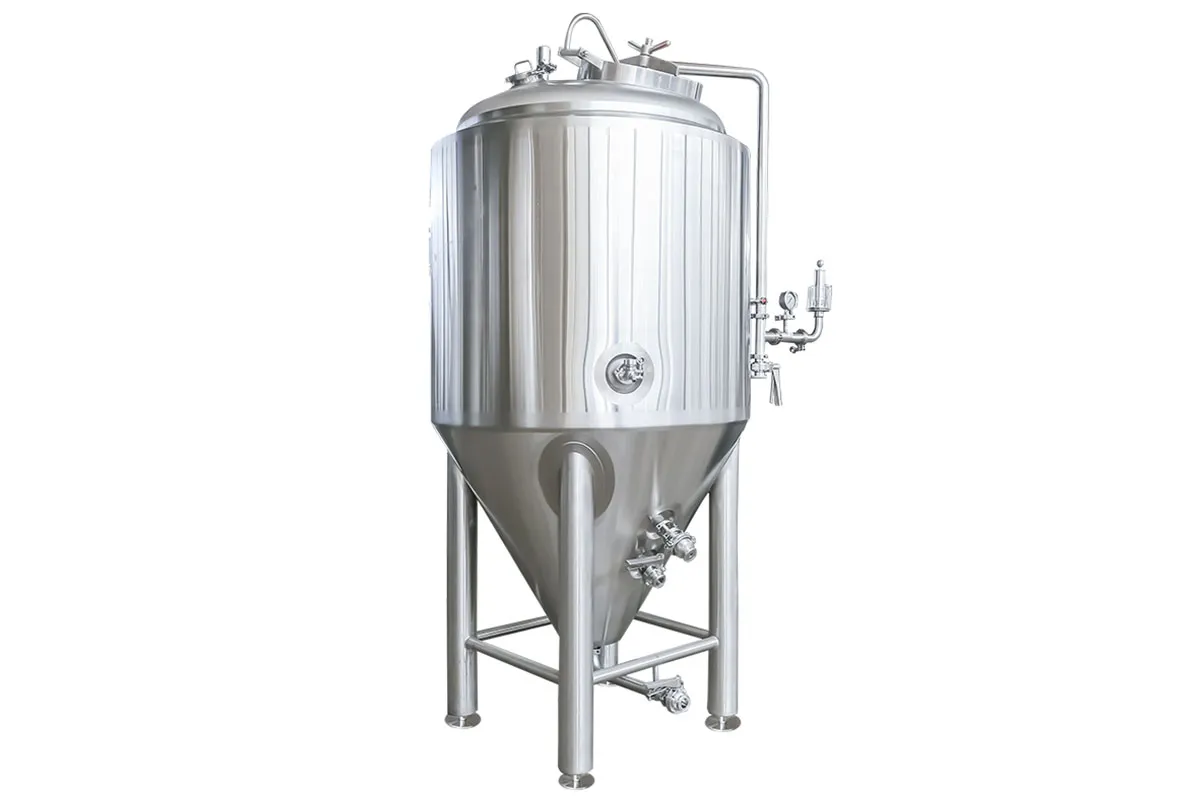

Industrial-ready 1000L fermenter (stainless steel conical fermentation tank) built for stable wort fermentation and maturation. Engineered with hygienic sanitary details, precise glycol cooling, and CIP-ready design — ideal for craft and regional breweries that require consistent output.
For B2B buyers, a fermenter must deliver three things: repeatable fermentation, hygienic safety, and predictable operation. This 1000L fermentation tank is designed for wort fermentation or maturation, with a conical bottom for yeast management, sanitary ports for sampling and CIP, and dimple glycol jackets for precise temperature control.
We can provide layout suggestions, utilities lists, and integration notes to reduce on-site commissioning time.
The following specifications are taken from your provided 1000L brewery PDF fermentation tank section. For approvals and internal review, this table makes it easy to forward to your brewing engineer or EPC partner.
| Item | Specification |
|---|---|
| Function | Wort fermentation or maturation |
| Tank Capacity | 1000L (Min. head space: +25%) |
| Dimension | Φ1260 × 2550mm (Customizable) |
| Exterior Shell | SUS304 full welded; thickness (TH)=2mm |
| Insulation | 80mm PU (low thermal conductivity polyurethane) |
| Interior Finish | Fully polished to Ra ≤ 0.4 μm, without dead corner |
| Working Pressure | Tank and jacket working pressure: < 0.2 MPa |
| Pressure / Leakage Test | Water & gas leakage test 24h; tank tested at 0.2 MPa; jacket tested at 0.4 MPa |
| Bottom Cone | Conical bottom with 60° cone (customizable) |

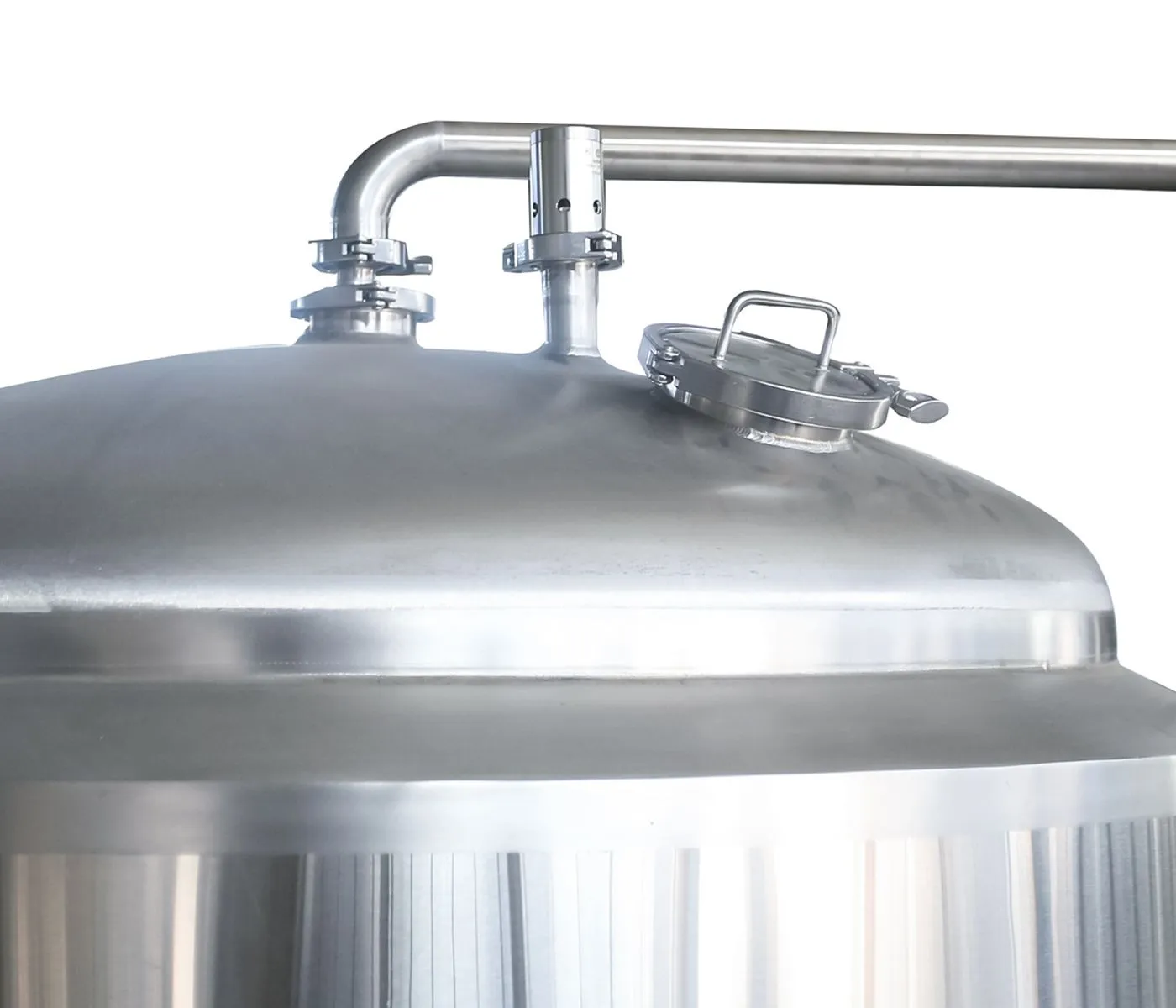

| Manway | Sanitary top-mounted oval manhole with pressured door (side mounted available) |
| Dry Hopping | 4″ dry hopping port with solid end cap (isotonic hops pitching tank optional) |
| Cooling Medium | 35% glycol liquid, -5°C |
| Cooling Jacket | Dimple plate on bottom and side wall; welded without over burning |
| Glycol Ports | In/out ports, thick wall pipe thread (top or bottom design available) |

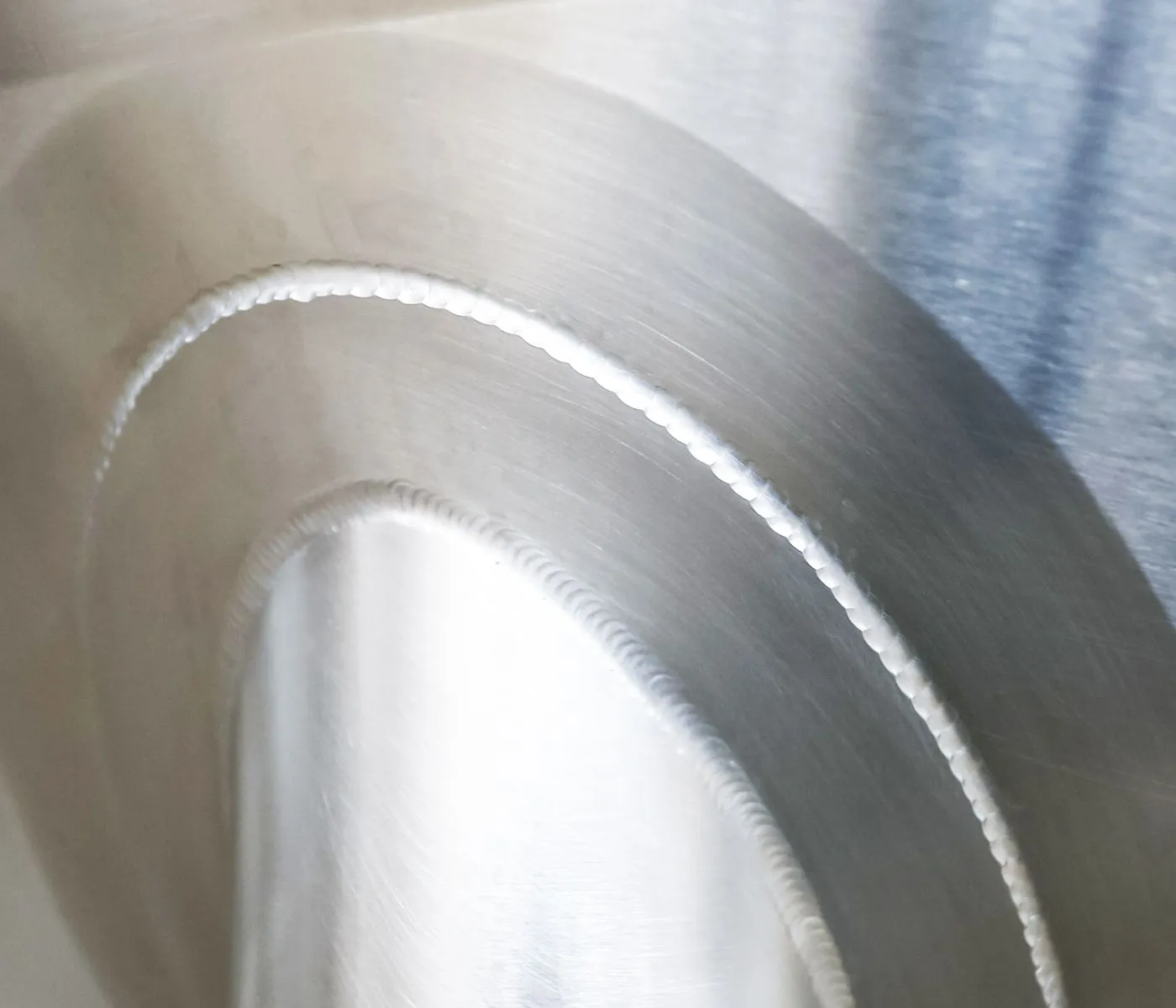

| Welding | 100% TIG welding with pure argon gas shield |
| Exterior Finish | Wire drawing plate |
| Top Head | Dished top full polished |
| Legs | 4 pcs SUS304 legs with braces; heavy-duty foot pads adjustable (up-down & slope) |

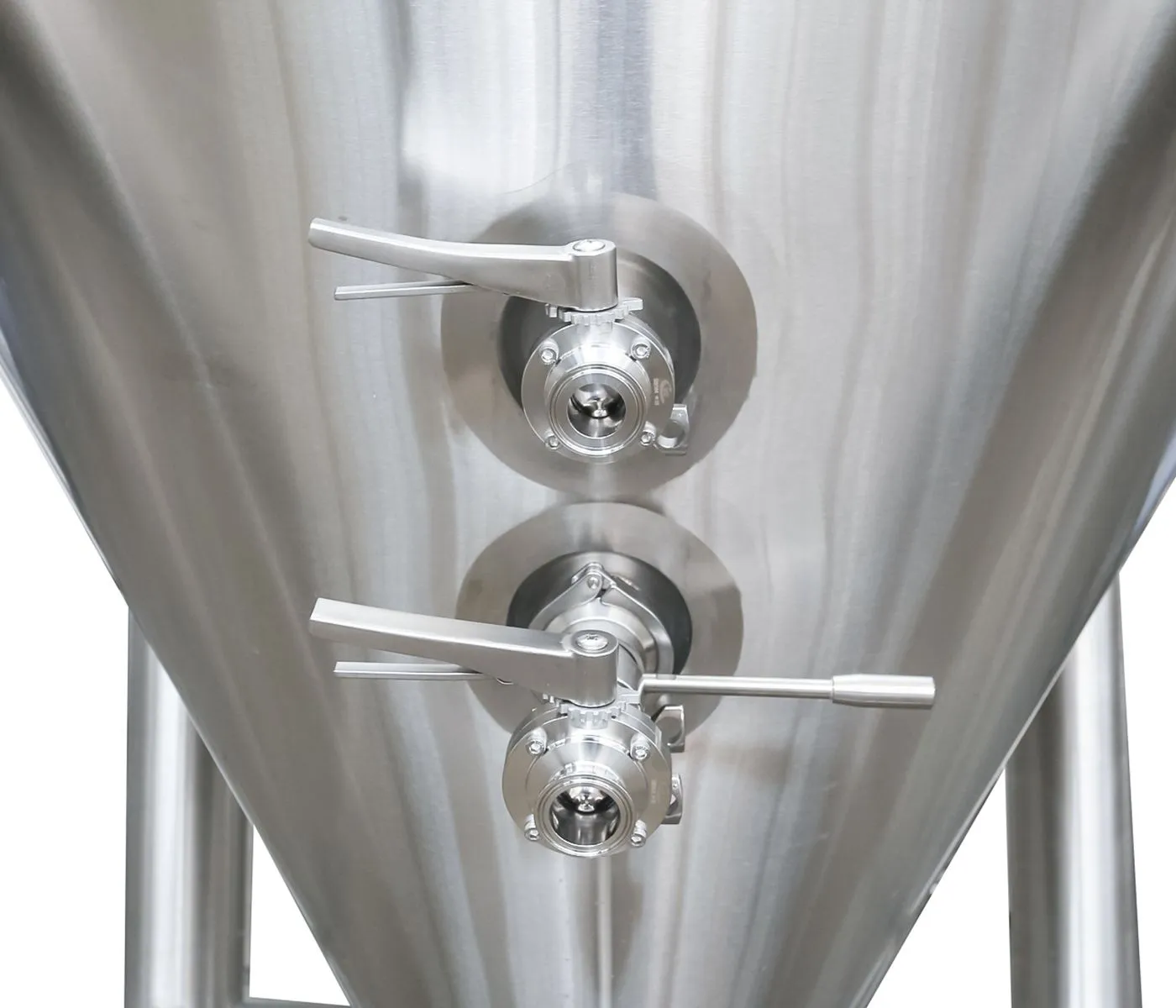

| Connections | Complete valves & fittings; Tri-clamp connection (DIN union available) |
Note: Pressure accessories include adjustable bunging valve and PRV options listed under Standard Features below.
A 1000L conical fermenter should reduce contamination risk and simplify daily operations. The following are included as standard features in the provided specification.
Temperature precision is the foundation of repeatable fermentation. This stainless steel fermentation tank uses dimple cooling jackets on both bottom and side wall, designed for stable heat transfer without over-burning during welding.
For commercial production, cooling load must match fermenter quantity and beer styles. When you request a quote, send:
We can configure glycol distribution and valve logic to match your tank layout and expansion plan.
B2B projects rarely fit a single template. This 1000L fermenter supports customization while keeping core sanitary and pressure design consistent.
Buyers typically request clarity on weld hygiene, polishing, and testing. This section summarizes the manufacturing points listed in the specification.
Explore other brewery equipment models by capacity to match different production goals and future expansion plans.
We’re not only a supplier—we support your brewery project from system configuration to commissioning and long-term operation. As a brewery equipment manufacturer, we focus on process compatibility, hygienic build quality, and scalable system design.
Configuration based on brewing workflows, not generic tank lists.
Layouts, utilities lists, and integration notes for your site.
Better cost control, faster response, clearer accountability.
Training, spare parts guidance, and expansion planning support.
Malt Handling → milling & transfer preparation
Brewhouse → mash/lautering + boil/whirlpool
Cooling & Transfer → heat exchange to fermentation temp
Fermentation → jacketed conical fermenters for stability
Conditioning (Optional) → BBT / maturation
CIP → clean-in-place hygiene standardization
Packaging (Future-ready) → keg/bottle/can integration

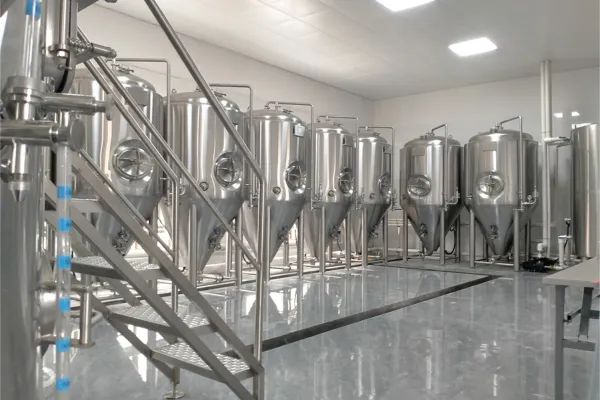

Choose a1000L Conical Fermenter layout that supports cleanability, stable fermentation temperature control, and planned expansion (more fermenters / BBT / packaging).
1000L Fermenters Are Designed for Professional Brewing Environments Where Stable Fermentation, Operational Efficiency, and Future Expansion Matter.
Quick answers for engineering and procurement teams evaluating a 1000L Fermenter project.
Yes. The listed reference dimension is Φ1260 × 2550mm, and the specification states it is customizable. Manway position (top/side), cone angle, and port layout can be adjusted based on your process and installation space.
The specification states tank and jacket working pressure is < 0.2 MPa. Factory testing includes 0.2 MPa for the tank and 0.4 MPa for the jacket, with leakage testing by water and gas for 24 hours.
Interior is fully polished to Ra ≤ 0.4 μm without dead corners, with sanitary design features including rotary CIP spray ball and sanitary valves. Welding is 100% TIG with argon shield.
Dimple plate cooling jackets are applied on bottom and side wall. Cooling medium is specified as 35% glycol with target -5°C, and inlet/outlet ports can be designed at top or bottom.
Tank quantity, beer styles and fermentation cycle (ale/lager), preferred manway/port layout, site clearance limits, and your local connection standard (Tri-clamp or DIN union). If you plan future expansion, include target capacity so we can reserve cooling and piping allowance.
Share your tank quantity, process requirements, and site conditions. We will respond with a configuration suggestion and a factory-direct quotation for your 1000L fermenter project.
We can design the 500L system to be packaging-ready (keg/bottle/can integration) to avoid future rework.
Fill in the essentials—our team will respond with a technical proposal.
Tip: Attach layout drawings and utilities list for faster engineering confirmation.
