Based on Meto’s standard 1T conical fermenter, this used 1000L fermenter combines SUS304 stainless-steel construction, jacketed cooling, 80 mm PU insulation and CIP-ready internals.
Meto-designed the 1000L fermentation tank in SUS304 stainless steel, 60° conical bottom, 3.0 mm inner shell, 80 mm PU insulation and glycol jackets.
Modernized 1000L brewery equipment built on an industrial Meto design, adapted to your real project.
The used 1000L fermentation tank comes from Meto’s 1T conical fermenter design, with professional geometry and fittings that have been proven in many breweries.

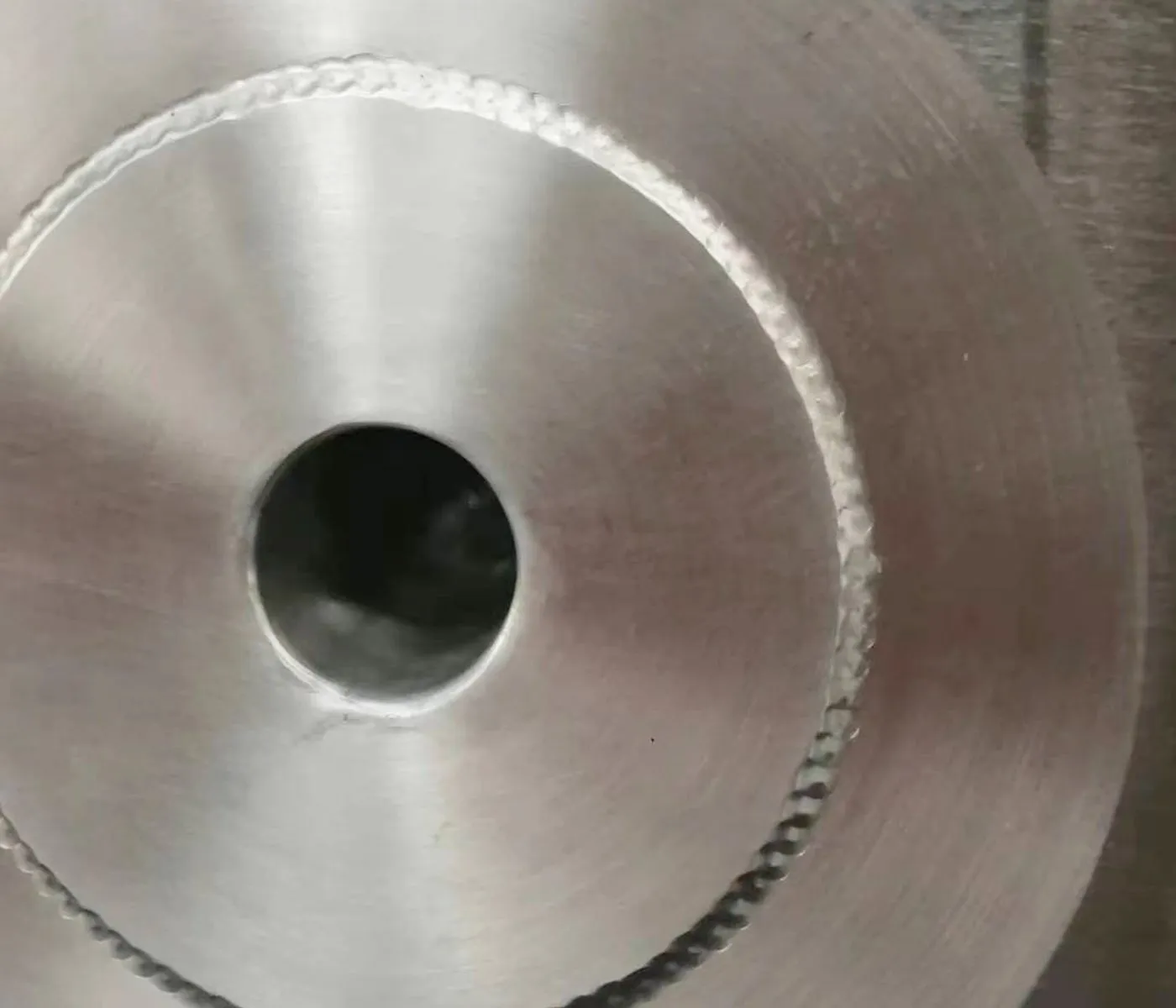

Inner shell 3.0 mm SUS304, outer shell 2.0 mm SUS304, 60° cone, all TIG-welded and polished .
Approx. 80 mm PU insulation around shell and cone helps keep the 1000L fermentation temperature stable and cuts energy consumption in the cellar.

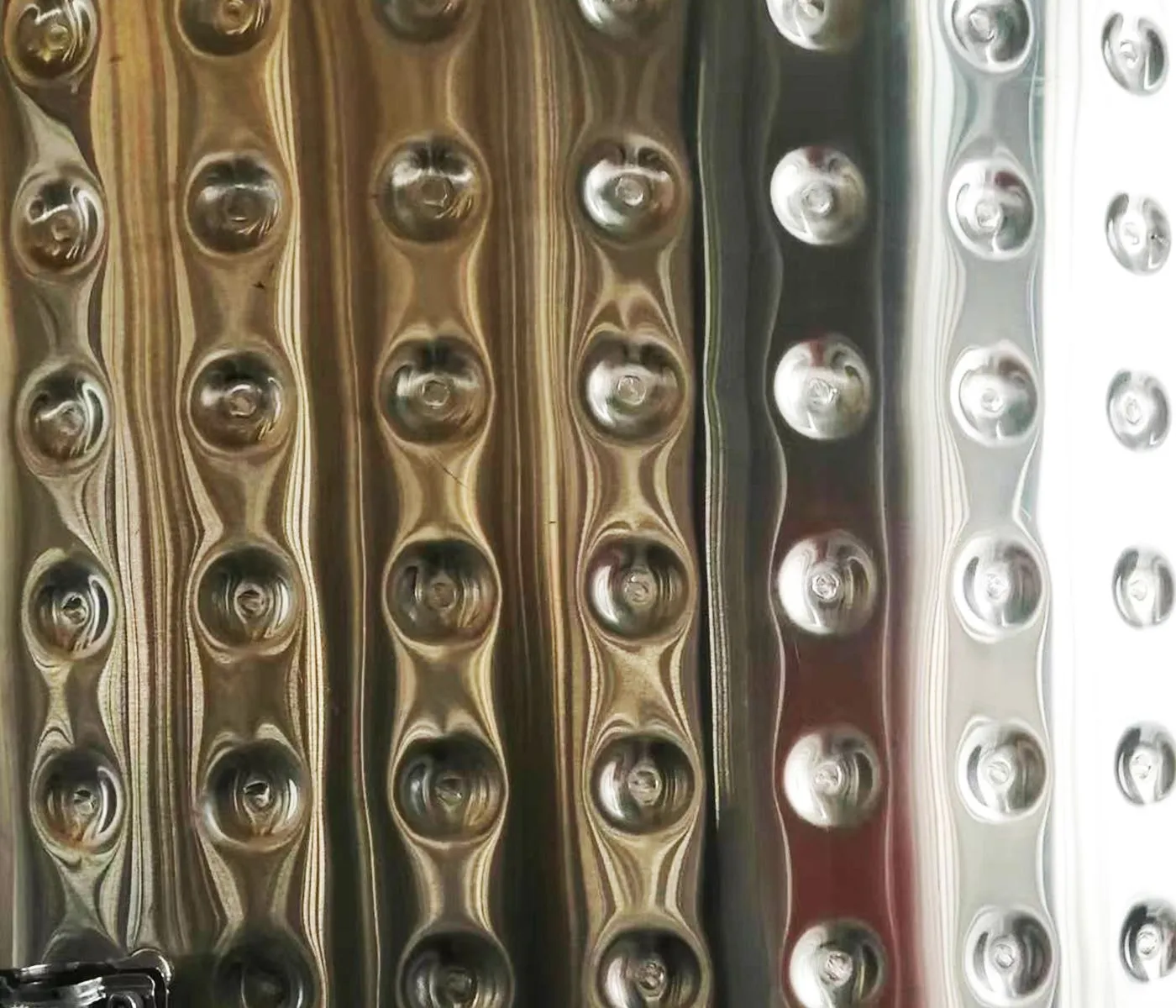

Etched glycol jackets on both cylinder and cone provide efficient cooling for the 1000L fermenter during fermentation and cold conditioning.

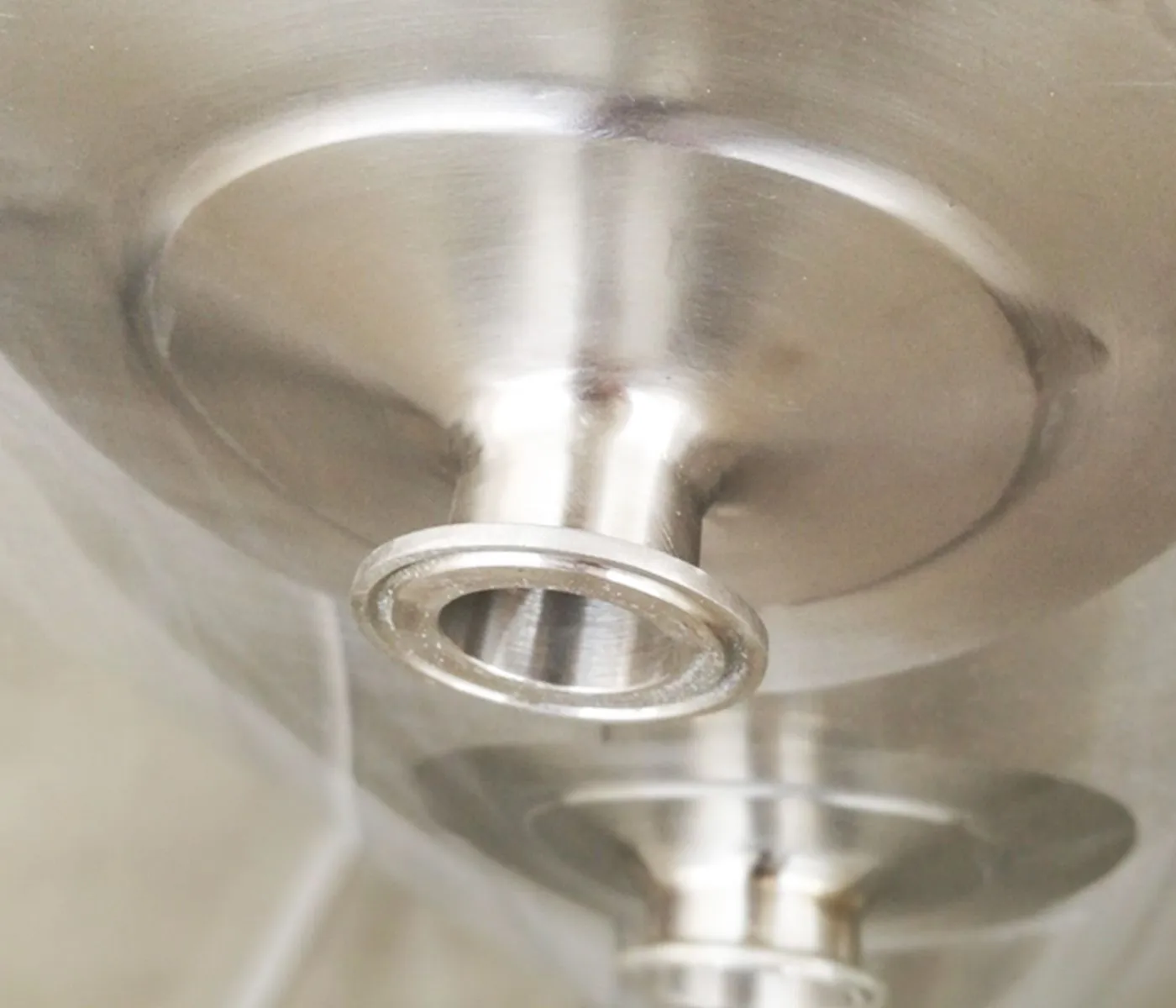

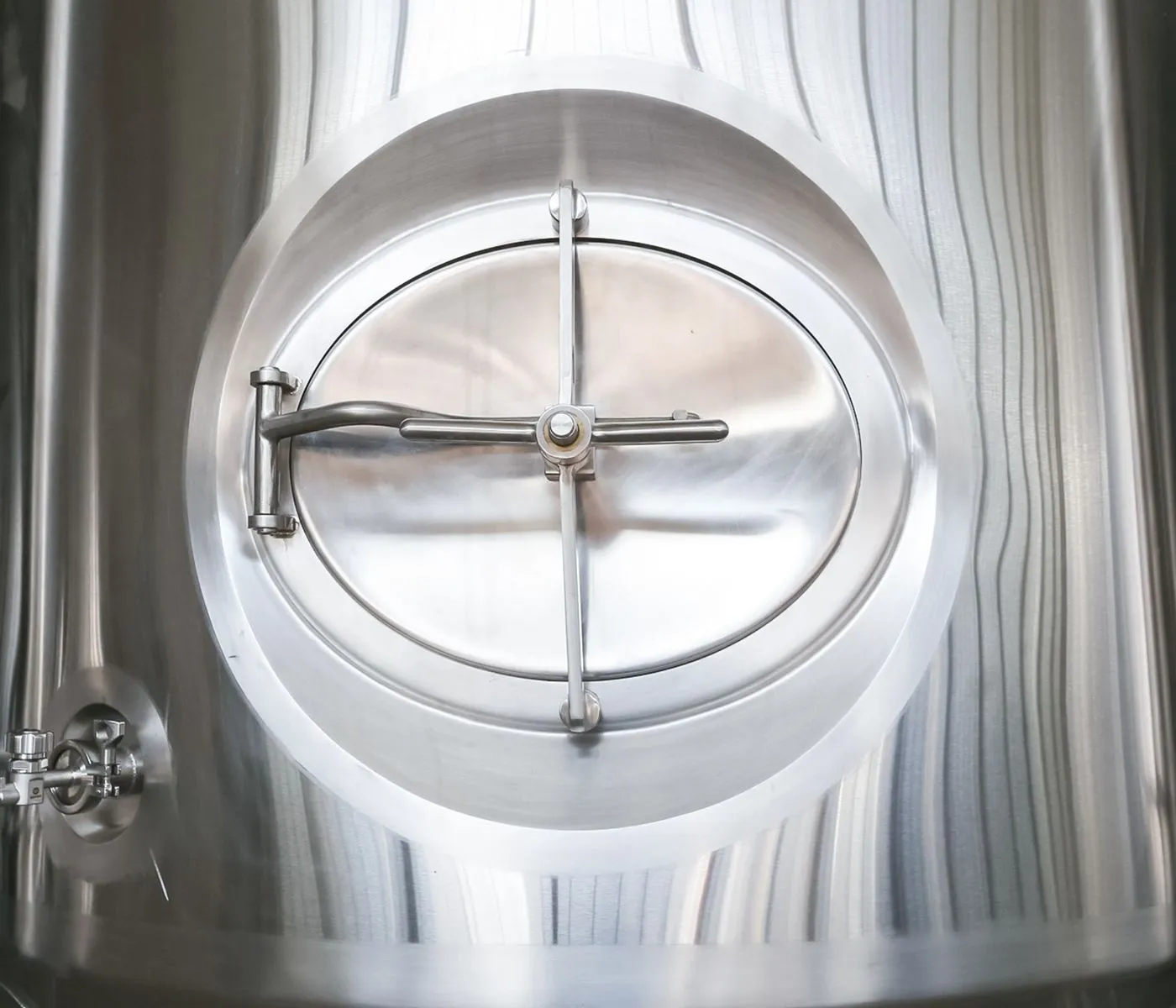

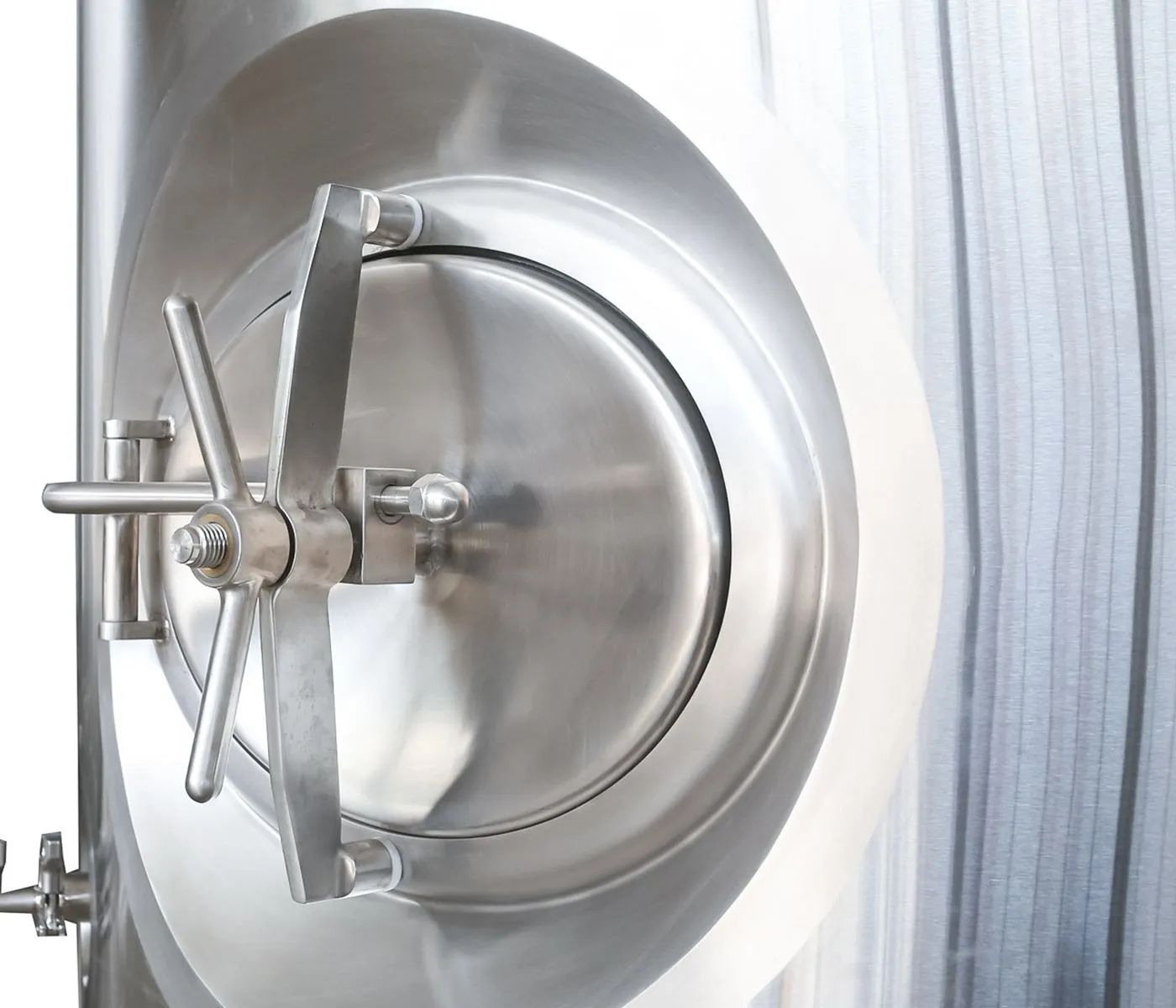

Internal surface polished to Ra ≤ 0.4 μm, 360° CIP spray ball, shadowless manway and hygienic fittings make this 1000L conical fermenter easy to clean and sanitize.

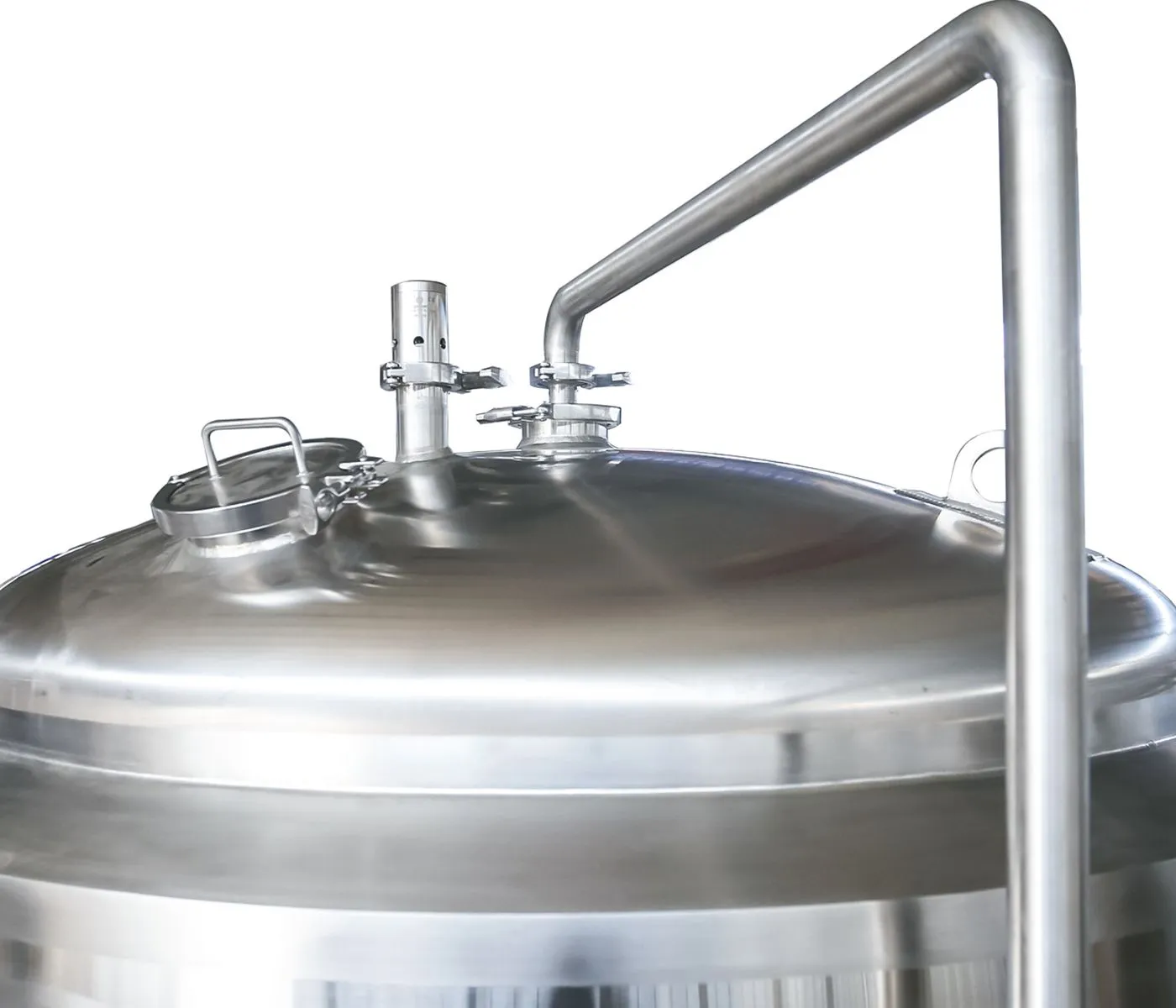

Design pressure 0.4 MPa, working pressure around 0.2 MPa, with PRV and safety valves – suitable as a 1000L unitank for fermentation, maturation and carbonation.
Every 1000L fermentation tank must undergo a rigorous quality control process prior to shipment
Check shell, cone, welds and jackets of the 1000L fermenter, then perform pressure and leak tests.
Deep cleaning, scale removal and passivation where required to restore a hygienic internal surface.
Inspect PRV, sampling valve, racking arm, gaskets and key accessories.
Provide basic test records and photos so you can review the real condition of the 1000L tank.
The 1000L fermentation tank is supplied with a complete set of hygienic fittings so you can put it into service quickly.
Adjustable PRV (approx. 0.1–0.25 MPa), pressure gauge around 0–0.6 MPa for safe tank operation.

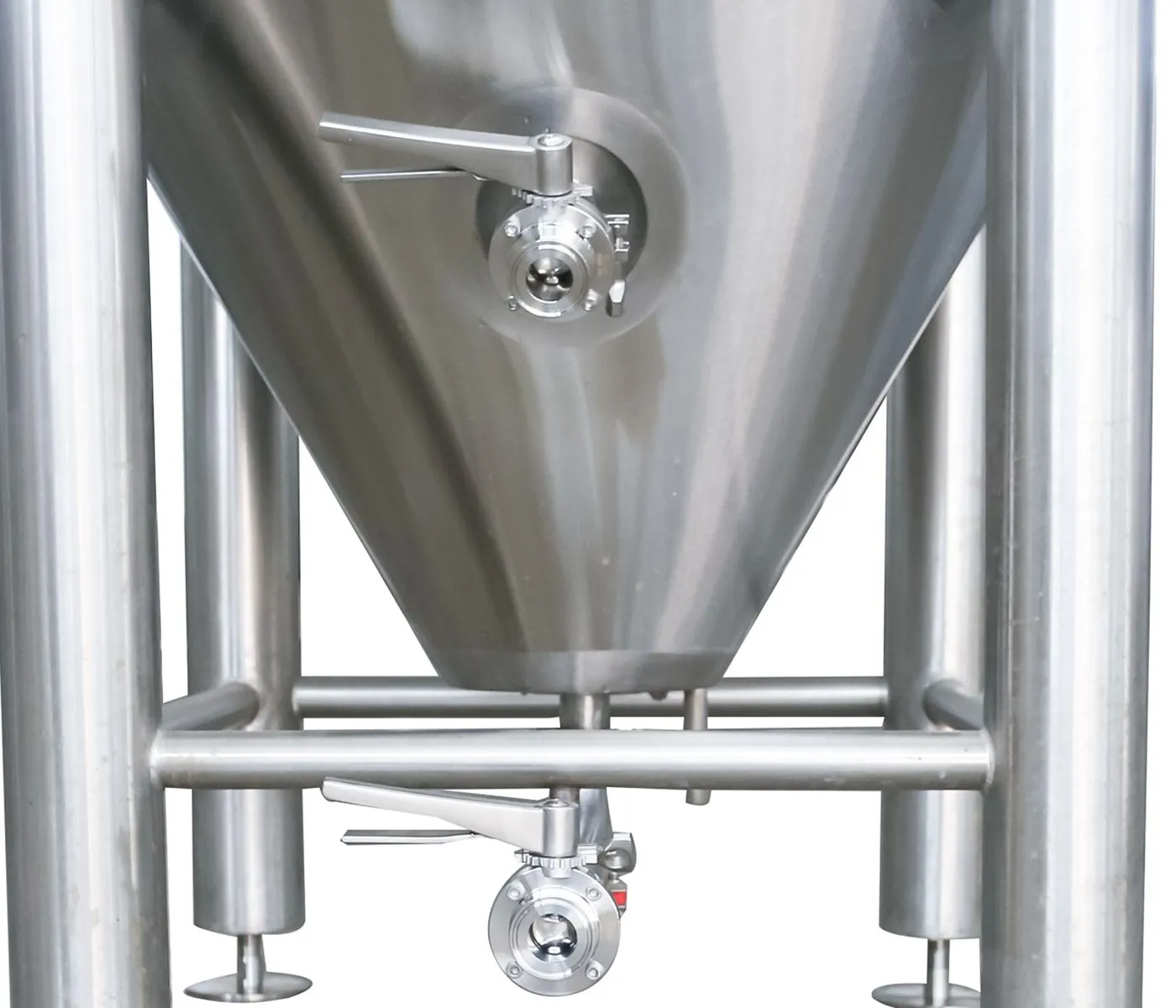

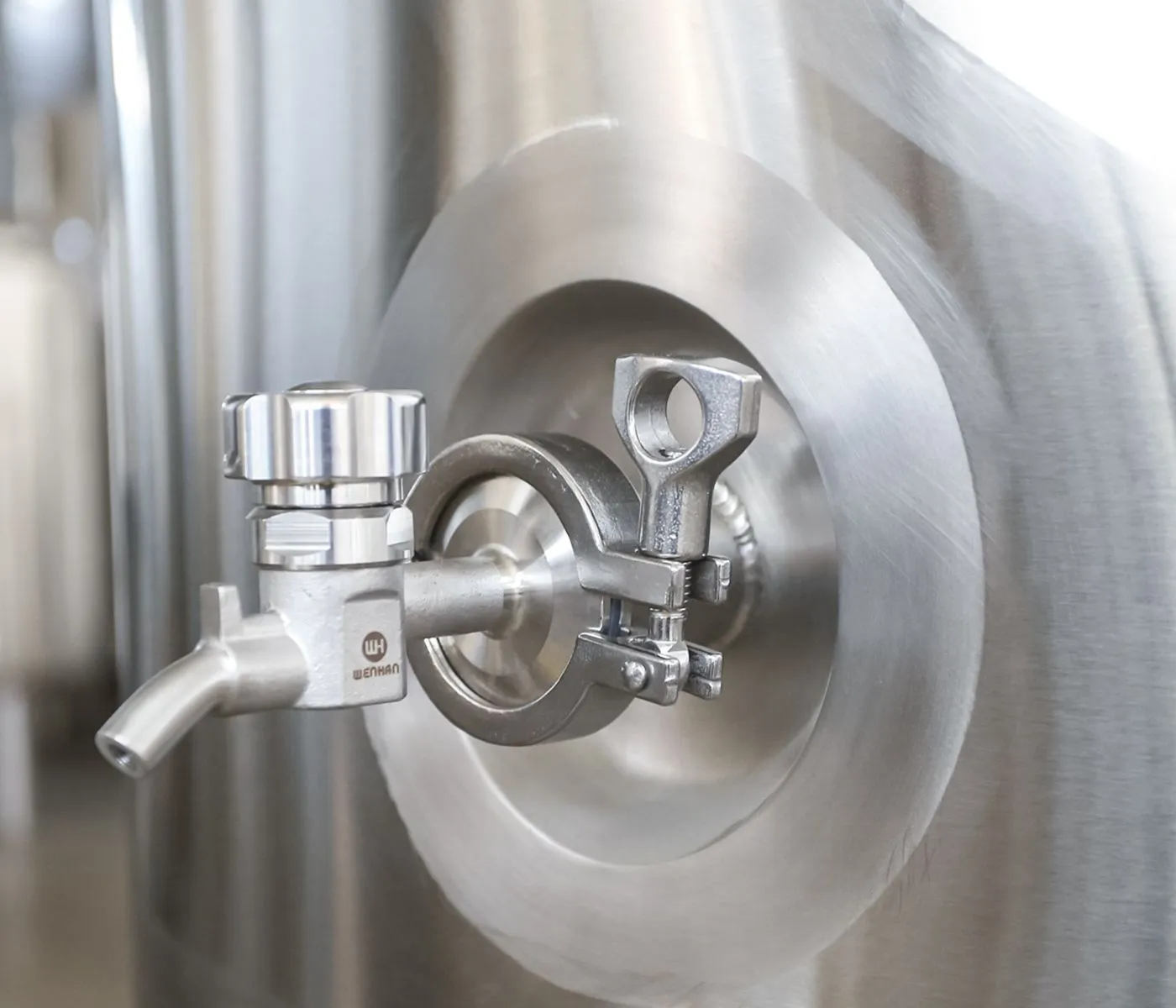

Sanitary sampling valve (DN20) and 360° rotating racking arm for clear beer draw-off.
Carbonation stone and dry-hopping port can be included to use the tank as a 1000L unitank.
PT100 temperature probe with transmitter for precise temperature monitoring and control integration.
Key technical data for the Meto 1T design, applied to this 1000L fermentation tank.
| Parameter | 1000L Fermentation Tank (1T) |
|---|---|
| Type | 1000L conical fermenter / 1000L unitank |
| Effective Volume | Approx. 1000 L (1T) |
| Application | Beer, cider, kombucha and similar beverages |
| Inner / Outer Material | SUS304 / SUS304 stainless steel |
| Inner Shell Thickness | 3.0 mm |
| Outer Shell Thickness | 2.0 mm |
| Cone Angle | 60° conical bottom |
| Insulation | PU foam, approx. 80 mm thickness |
| Cooling Jackets | Etched glycol jackets on cylinder and cone |
| Design / Working Pressure | Design pressure ~0.4 MPa / working pressure ~0.2 MPa |
| Internal Surface Finish | Polished to Ra ≤ 0.4 μm, CIP-ready |
| CIP Cleaning | 360° rotary CIP spray ball |
| Temperature Sensor | PT100 temperature probe + transmitter |
| Manway | Shadowless manway on shell or top (SUS304) |
| Tank Legs | 4 × SUS304 legs with adjustable leveling feet |
Share your brewhouse size, yearly volume and cellar layout. We will prepare a detailed offer for our 1000L fermentation tank, including refurbishment scope, accessories, cooling integration options and delivery plan.
